A semi-electric pallet truck reduces the effort of moving loaded pallets, but it does not always power both travel and lifting. By the end, you will know which functions are motorised, how to read semi electric pallet truck specifications, and whether the truck suits your pallets, floors, aisles and daily workload.
Key takeaways
- Check load capacity, fork dimensions, battery voltage and turning radius.
- Use the truck for low-lift transport, not rack stacking or high lifting.
- Measure aisle width, floor condition, pallet openings and loading ramps first.
- Confirm local service, spare parts and operator training before purchase.
Which Functions Does a Semi-Electric Pallet Truck Power?

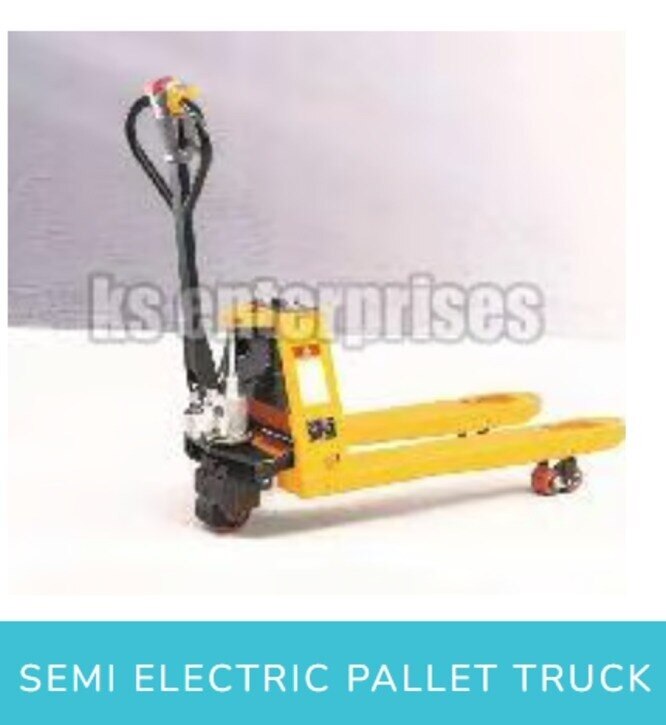

A semi-electric pallet truck normally uses a battery-powered traction motor to move forward and backward, while you steer with the tiller and raise the forks using a manual hydraulic pump. This makes it a low-lift mover, not a stacking machine.
Its low fork height lifts a pallet clear of the floor only; it does not place pallets into storage racks.
| Option | Travel | Fork lifting | Operator effort |
|---|---|---|---|
| Semi-electric | Battery-powered motor | Manual hydraulic pump | Steer, position and pump |
| Fully powered electric | Electric travel motor | Electric lift motor | Steer and control powered functions |
| Hand pallet truck | Operator pushes or pulls | Manual hydraulic pump | Pump, push or pull, and steer |
The terminology is inconsistent. Some suppliers call a truck with electric travel and electric lift semi-electric, so ask for separate confirmation of the drive function and lift function on the specification sheet.
A semi electric pallet truck in Delhi reduces walking and pushing effort, but you still need precise tiller control and manual positioning in tight aisles and around columns.
Choose a semi electric pallet truck for material handling equipment in Delhi when you move pallets short or medium distances and lift only occasionally at floor or dock level. Choose a stacker or forklift for sustained lifting, rack storage, truck loading at height, or substantial ground clearance.
During final alignment, the operator still controls the tiller rather than relying on the motor.
Which Semi Electric Pallet Truck Specifications Should You Compare?
Compare the complete semi electric pallet truck specifications, not just the headline capacity. Common market figures include a rated load of 1,500–2,000 kg, but the exact rating depends on the manufacturer’s stated load-centre distance, commonly 600 mm for pallet trucks.
| Specification | Common market range or detail to confirm |
|---|---|
| Rated load | 1,500–2,000 kg at the stated load centre |
| Fork length | 1,150–1,220 mm |
| Fork heights | Lowered: 80–85 mm; raised: 115–200 mm |
| Turning radius | 1,400–1,600 mm |
| Overall width | 680–750 mm |
| Performance | Travel speed, lift speed, ground clearance and maximum gradeability |
| Truck construction | Unladen weight, wheel material and brake type |
| Electrical system | Battery type, voltage, capacity in ampere-hours, charger input and output, charging time, and whether the charger is supplied |
Fork length and fork width must match the pallet openings. A generic fork dimension proves nothing: the forks can enter one pallet design and bind against its bottom boards on another.
A load positioned farther forward reduces the safe practical capacity. Uneven weight distribution and a damaged pallet create the same risk, even when the total weight is below the rating. Ask for the rating plate and specification sheet before comparing quotations for material handling equipment in Delhi.
Check travel speed with and without load, operating temperature and noise level if the truck will work near people.
How Do You Operate the Truck Safely Through a Normal Move?
Operate it as a controlled sequence: inspect the truck, secure the pallet, travel with a low load, and park it correctly.
1. Inspect both forks, load wheels, the drive wheel, hydraulic lines for leaks, the tiller, guards and visible fasteners. Check the battery-charge indicator, key or PIN control, horn, emergency-reverse button, belly switch, brake and travel controls before entering an aisle.
2. Drive both forks fully into the pallet until the load sits against the fork face. Do not lift a partly engaged pallet; it can slip, damage the boards or shift towards the operator.
3. Raise the forks only enough to clear the floor. Keep the load low while travelling, and reduce speed before corners, blind intersections, dock plates and ramps.
4. Keep your view clear by travelling in the direction that gives the best sight line. Keep pedestrians separated from the travel path, and stop if a person enters it.
5. Do not rely on the motor to position the truck in a narrow gap. Steer deliberately and use manual effort for final alignment when the model requires it.
6. At the parking point, stop on a stable surface, lower the forks completely, apply the brake and switch off the truck. Connect the charger only as directed for that battery. If you are operating a semi electric pallet truck in delhi, keep this same sequence visible at the charging and dispatch area.
Will Your Floors, Pallets and Aisles Suit the Truck?
Smooth, sound concrete and a level route suit this truck best. Keep a charging point nearby, then inspect every transition it must cross; small load wheels and low ground clearance pass shocks into the chassis, battery and controller.
- Check expansion joints, dock plates, ramps, potholes, thresholds and loose debris. Wet flooring can reduce traction and affect braking.
- Reject an uneven yard, steep ramp or long outdoor route unless the supplier provides a documented maximum gradeability figure for the intended loaded condition. A verbal assurance is not enough.
- Measure turning radius, overall width and required aisle space against rack-end clearances, columns, dock edges and pedestrian lanes. Include the truck’s overall length where turning space is tight.
- Match the forks to the pallets used in your Delhi warehouse. Check two-way and four-way entry, Euro-pallet or Indian-standard dimensions, closed bottoms, damaged boards and misplaced boards.
- Measure the pallet opening height, internal width, fork spacing and clearance on both sides. A fork can enter while still binding against bottom boards or leaving too little racking clearance.
- Compare the semi electric pallet truck specifications for ground clearance, wheel material, brake type, loaded travel behaviour and gradeability, not just rated capacity.
A semi electric pallet truck for material handling equipment in Delhi suits short or medium horizontal moves when floors are reasonably smooth and charging access is close. Continuous high-throughput travel, frequent ramps, uneven docks or sustained outdoor work justify comparing a full electric pallet truck with powered lift and stronger protection.
How Should You Select a Semi-Electric Pallet Truck in Delhi?
Choose the truck by duty cycle, not rated capacity alone. A semi electric pallet truck for material handling equipment in Delhi suits powered travel with occasional low-height lifting, short or medium-distance pallet movement, dock-level loading and replenishment.
| Duty cycle | Better fit | Reason |
|---|---|---|
| Short or medium routes, occasional lifting | Semi-electric pallet truck | Reduces pushing and walking effort |
| Continuous high-throughput movement | Fully powered pallet truck | Powered travel and lift reduce operator effort |
| Long routes, frequent ramps or repeated lifting | Fully powered model with larger battery | Provides greater endurance and climbing capability |
Select the battery around daily operating hours and charging access. Lead-acid batteries cost less initially but need charging ventilation, electrolyte maintenance, and longer recharge or cooling periods. Lithium-ion batteries support opportunity charging and lower routine maintenance, but require a compatible charger and battery-management system and cost more upfront.
When comparing a pallet truck supplier in Delhi, request written warranty coverage separately for the truck, battery, charger and wear parts. Confirm these support details:
- Local access to traction motors, controllers, wheels, hydraulic parts, tiller assemblies, batteries and chargers
- Technician response time and whether travel is included
- Preventive-maintenance tasks, visit frequency and exclusions
K. S. Enterprises belongs in that comparison when you need a local source for material handling equipment in Delhi; judge the complete operating package, including support and downtime risk, rather than machine price alone.
Related product
 | Pallet Trucks K. S. Enterprises is a trusted supplier of premium-quality Semi Electric Pallet Trucks, offering reliable, efficient, and cost-effective material... View product → |
Frequently asked questions
Which functions does a semi-electric pallet truck power?
Its battery-powered traction motor drives the truck forward and backward. You steer with the tiller and raise the forks with a manual hydraulic pump, so it handles low-lift transport rather than stacking.
Which semi-electric pallet truck specifications should you compare?
Compare rated load capacity, fork length and width, lowered and raised fork height, battery voltage and capacity, travel speed, turning radius, ground clearance, wheel material and overall weight.
How do you operate a semi-electric pallet truck safely?
Inspect the forks, wheels, tiller, controls, battery, horn and emergency stop before moving. Centre the load, keep it within the rated capacity, travel with the forks low, slow down at corners and keep people clear.
Will your floors, pallets and aisles suit the truck?
Measure aisle width and pallet entry openings, then check for level floors, potholes, steep ramps, wet surfaces and loose debris. Confirm that the truck's turning radius, fork dimensions and ground clearance suit the route.
How should you select a semi-electric pallet truck in Delhi?
Match the truck to your load, daily travel distance, pallet type, aisle layout, charging access and floor conditions. Ask a pallet truck supplier in Delhi about service response, replacement batteries, wheels, chargers and operator training.
